TPL9201N

Enlarger

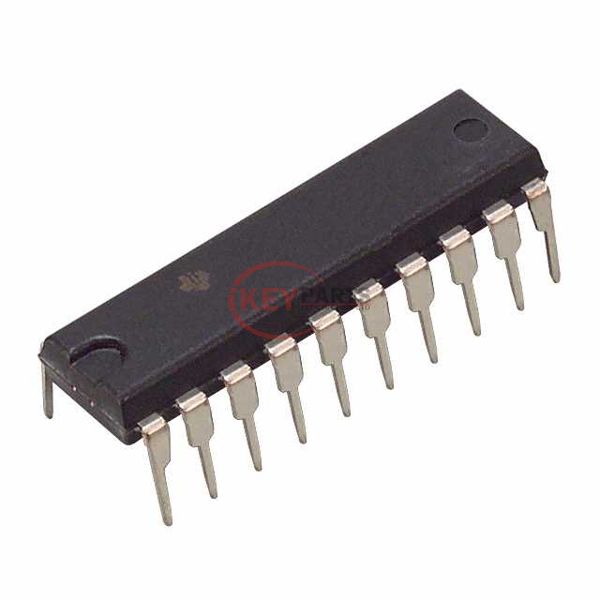

Lmages are for reference only See Product Specitications

Rochester Electronics TPL9201N

Manufacturer :
Rochester Electronics
Mfr. Part # :
TPL9201N
Description
ANALOG CIRCUIT, 1 FUNC, PDIP20
Catalog
PMIC - Power Distribution Switches, Load Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPL9201N PDF
TPL9201N Tech Specifications
Series-
PackageBulk
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs8
Ratio - Input:Output1:8
Output ConfigurationLow Side
Output TypeN-Channel
InterfaceSerial
Voltage - Load7V ~ 18V
Voltage - Supply (Vcc/Vdd)0V ~ 5.25V
Current - Output (Max)150mA
Rds On (Typ)-
Input TypeNon-Inverting
Features-
Fault ProtectionCurrent Limiting (Fixed), Over Temperature
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeThrough Hole
Supplier Device Package20-PDIP
Package / Case20-DIP (0.300", 7.62mm)
Request Quote Now
Request Quote Now

We can supply TPL9201N, use the request quote form to request TPL9201N pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPL9201N. The price and lead time for TPL9201N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPL9201N. We look forward to working with you to establish long-term relations of cooperation.
