TPS2559QWDRCTQ1

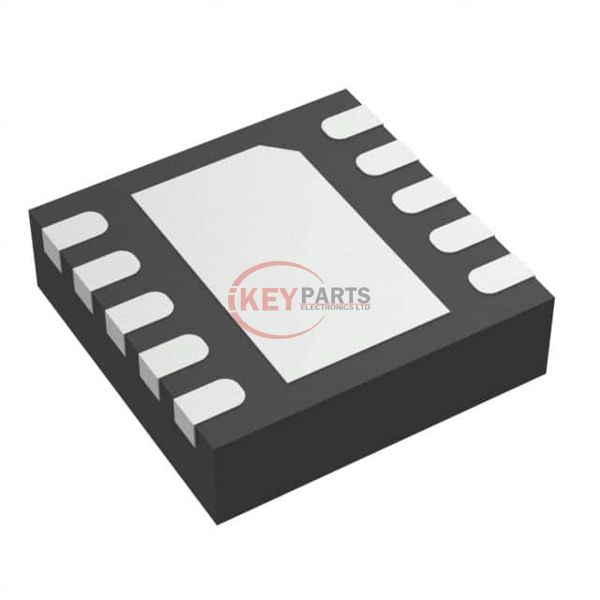

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments TPS2559QWDRCTQ1

Manufacturer :
Texas Instruments
Mfr. Part # :
TPS2559QWDRCTQ1
Description
IC PWR SWITCH N-CHAN 1:1 10VSON
Catalog
PMIC - Power Distribution Switches, Load Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPS2559QWDRCTQ1 PDF
TPS2559QWDRCTQ1 Tech Specifications
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load2.5V ~ 6.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)5.5A
Rds On (Typ)13mOhm
Input TypeNon-Inverting
FeaturesSlew Rate Controlled, Status Flag
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package10-VSON (3x3)
Package / Case10-VFDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply TPS2559QWDRCTQ1, use the request quote form to request TPS2559QWDRCTQ1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPS2559QWDRCTQ1. The price and lead time for TPS2559QWDRCTQ1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPS2559QWDRCTQ1. We look forward to working with you to establish long-term relations of cooperation.
