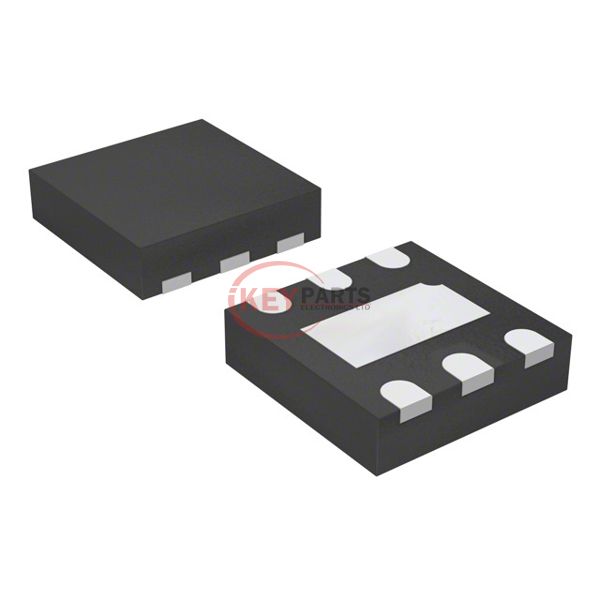

ADP196ACPZN-01-R7

Enlarger

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) ADP196ACPZN-01-R7

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
ADP196ACPZN-01-R7
Description
IC PWR SWITCH N-CHAN 1:1 6LFCSP
Catalog
PMIC - Power Distribution Switches, Load Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ADP196ACPZN-01-R7 PDF
In Stock
5779
ADP196ACPZN-01-R7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)3A
Rds On (Typ)10mOhm
Input TypeNon-Inverting
FeaturesLoad Discharge, Slew Rate Controlled
Fault ProtectionCurrent Limiting (Fixed), Over Temperature
Operating Temperature-40°C ~ 105°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-LFCSP-UD (2x2)
Package / Case6-UDFN Exposed Pad, CSP
Request Quote Now
Request Quote Now

We can supply ADP196ACPZN-01-R7, use the request quote form to request ADP196ACPZN-01-R7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ADP196ACPZN-01-R7. The price and lead time for ADP196ACPZN-01-R7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ADP196ACPZN-01-R7. We look forward to working with you to establish long-term relations of cooperation.
