Series | - | |
Package | Tube | |
Part Status | Active | |
Switch Circuit | - | |
Multiplexer/Demultiplexer Circuit | 16:1 | |
Number of Circuits | 1 | |
On-State Resistance (Max) | 300Ohm | |
Channel-to-Channel Matching (ΔRon) | 15Ohm (Typ) | |
Voltage - Supply, Single (V+) | 10.8V ~ 16.5V | |
Voltage - Supply, Dual (V±) | - | |
Switch Time (Ton, Toff) (Max) | 300ns, 300ns | |
-3db Bandwidth | - | |
Charge Injection | 4pC | |
Channel Capacitance (CS(off), CD(off)) | 5pF, 44pF | |
Current - Leakage (IS(off)) (Max) | 1nA | |
Crosstalk | - | |
Operating Temperature | -55°C ~ 125°C | |
Mounting Type | Surface Mount | |

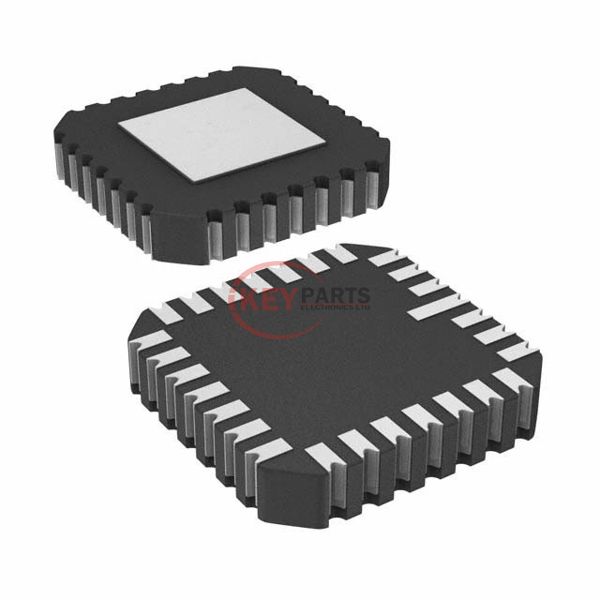

Package / Case | 28-LCC | |
Supplier Device Package | 28-LCC (11.43x11.43) |
We can supply ADG506ATE/883B, use the request quote form to request ADG506ATE/883B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ADG506ATE/883B. The price and lead time for ADG506ATE/883B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ADG506ATE/883B. We look forward to working with you to establish long-term relations of cooperation.
![]() |
