MUX506IDWR

Enlarger

Lmages are for reference only See Product Specitications

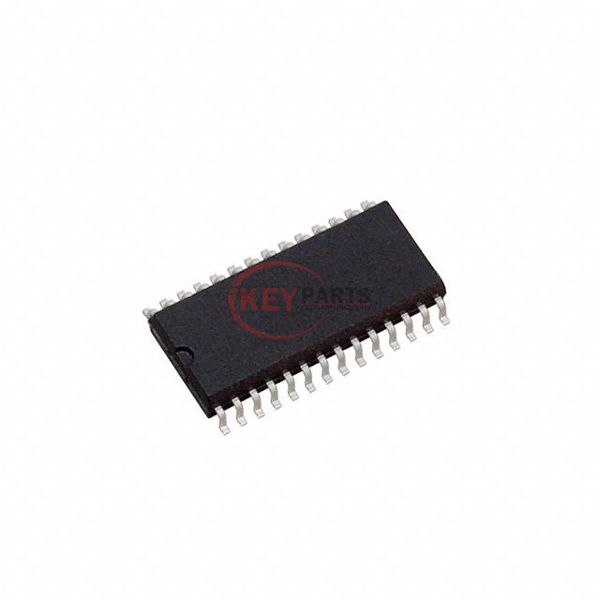

Texas Instruments MUX506IDWR

Manufacturer :
Texas Instruments
Mfr. Part # :
MUX506IDWR
Description
IC SWITCH SINGLE 28SOIC
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MUX506IDWR PDF
In Stock
1016
MUX506IDWR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)200Ohm
Channel-to-Channel Matching (ΔRon)6Ohm
Voltage - Supply, Single (V+)10V ~ 36V
Voltage - Supply, Dual (V±)±5V ~ 18V
Switch Time (Ton, Toff) (Max)136ns, 78ns
-3db Bandwidth-
Charge Injection0.67pC
Channel Capacitance (CS(off), CD(off))3pF, 12.2pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-96dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SOIC
Request Quote Now
Request Quote Now

We can supply MUX506IDWR, use the request quote form to request MUX506IDWR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MUX506IDWR. The price and lead time for MUX506IDWR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MUX506IDWR. We look forward to working with you to establish long-term relations of cooperation.
