ADG823BRMZ

Enlarger

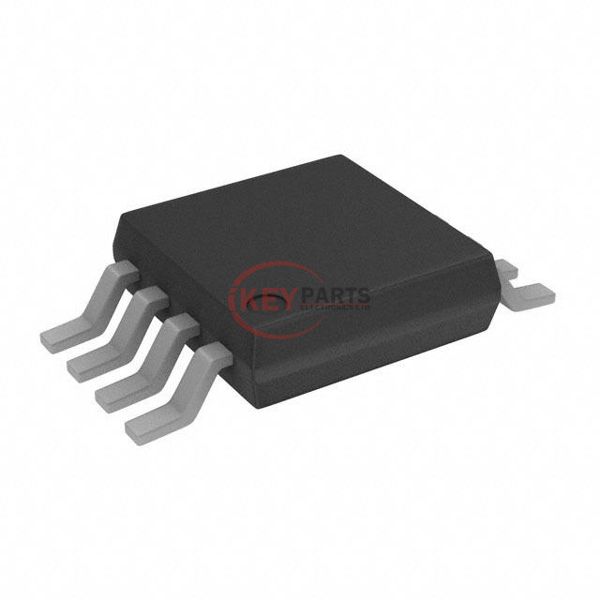

Lmages are for reference only See Product Specitications

Linear Technology (Analog Devices, Inc.) ADG823BRMZ

Manufacturer :
Linear Technology (Analog Devices, Inc.)
Mfr. Part # :
ADG823BRMZ
Description
IC SWITCH DUAL SPST 8MSOP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ADG823BRMZ PDF
In Stock
270
ADG823BRMZ Tech Specifications
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO/NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits2
On-State Resistance (Max)600mOhm
Channel-to-Channel Matching (ΔRon)160mOhm
Voltage - Supply, Single (V+)1.8V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)45ns, 16ns
-3db Bandwidth24MHz
Charge Injection15pC
Channel Capacitance (CS(off), CD(off))85pF, 98pF
Current - Leakage (IS(off)) (Max)250pA
Crosstalk-82dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package8-MSOP
Request Quote Now
Request Quote Now

We can supply ADG823BRMZ, use the request quote form to request ADG823BRMZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ADG823BRMZ. The price and lead time for ADG823BRMZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ADG823BRMZ. We look forward to working with you to establish long-term relations of cooperation.
