Series | - | |
Package | Tube | |
Part Status | Active | |
Switch Circuit | - | |
Multiplexer/Demultiplexer Circuit | 16:1 | |
Number of Circuits | 1 | |
On-State Resistance (Max) | 450Ohm | |
Channel-to-Channel Matching (ΔRon) | - | |
Voltage - Supply, Single (V+) | - | |
Voltage - Supply, Dual (V±) | ±4.5V ~ 18V | |
Switch Time (Ton, Toff) (Max) | 1µs, 400ns | |
-3db Bandwidth | - | |
Charge Injection | - | |
Channel Capacitance (CS(off), CD(off)) | 6pF, 45pF | |
Current - Leakage (IS(off)) (Max) | 5nA | |
Crosstalk | - | |
Operating Temperature | 0°C ~ 70°C (TA) | |
Mounting Type | Through Hole | |

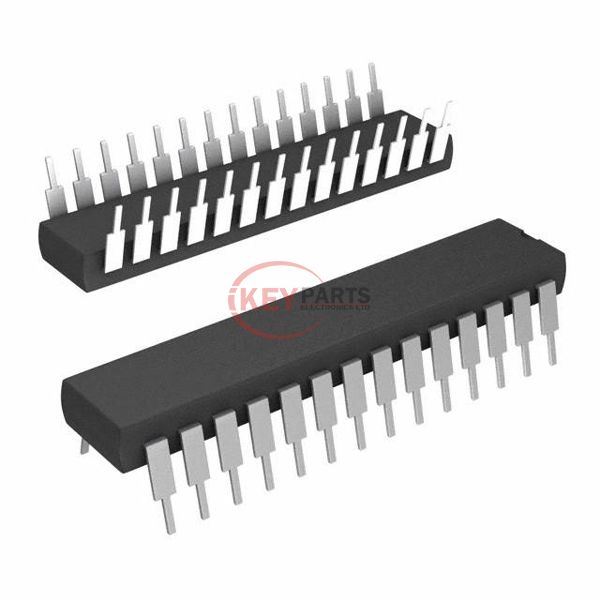

Package / Case | 28-DIP (0.600", 15.24mm) | |
Supplier Device Package | 28-PDIP |
We can supply DG506ACJ+, use the request quote form to request DG506ACJ+ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DG506ACJ+. The price and lead time for DG506ACJ+ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DG506ACJ+. We look forward to working with you to establish long-term relations of cooperation.
![]() |
