SN74LVC1G3157DRLR

Enlarger

Lmages are for reference only See Product Specitications

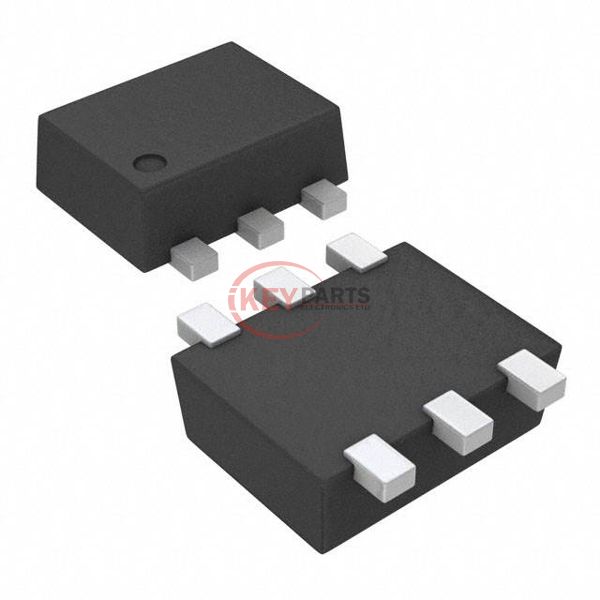

Texas Instruments SN74LVC1G3157DRLR

Manufacturer :
Texas Instruments
Mfr. Part # :
SN74LVC1G3157DRLR
Description
IC SWITCH SPDT SINGLE 6SOT
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SN74LVC1G3157DRLR PDF
In Stock
668
SN74LVC1G3157DRLR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits1
On-State Resistance (Max)15Ohm
Channel-to-Channel Matching (ΔRon)100mOhm
Voltage - Supply, Single (V+)1.65V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)5.7ns, 3.8ns
-3db Bandwidth340MHz
Charge Injection7pC
Channel Capacitance (CS(off), CD(off))5.2pF
Current - Leakage (IS(off)) (Max)1µA
Crosstalk-54dB @ 10MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device Package6-SOT
Request Quote Now
Request Quote Now

We can supply SN74LVC1G3157DRLR, use the request quote form to request SN74LVC1G3157DRLR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74LVC1G3157DRLR. The price and lead time for SN74LVC1G3157DRLR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74LVC1G3157DRLR. We look forward to working with you to establish long-term relations of cooperation.
