MAX322ESA+

Enlarger

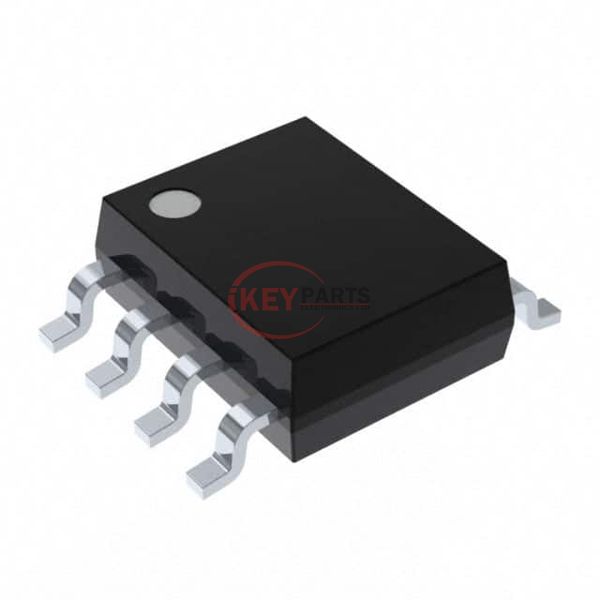

Lmages are for reference only See Product Specitications

Maxim Integrated MAX322ESA+

Manufacturer :
Maxim Integrated
Mfr. Part # :
MAX322ESA+
Description
IC SWITCH DUAL SPST 8SOIC
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MAX322ESA+ PDF
In Stock
1075600
MAX322ESA+ Tech Specifications
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO/NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits2
On-State Resistance (Max)35Ohm
Channel-to-Channel Matching (ΔRon)300mOhm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)±2.7V ~ 8V
Switch Time (Ton, Toff) (Max)150ns, 100ns
-3db Bandwidth-
Charge Injection2pC
Channel Capacitance (CS(off), CD(off))9pF, 9pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-85dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
Request Quote Now
Request Quote Now

We can supply MAX322ESA+, use the request quote form to request MAX322ESA+ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAX322ESA+. The price and lead time for MAX322ESA+ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAX322ESA+. We look forward to working with you to establish long-term relations of cooperation.
