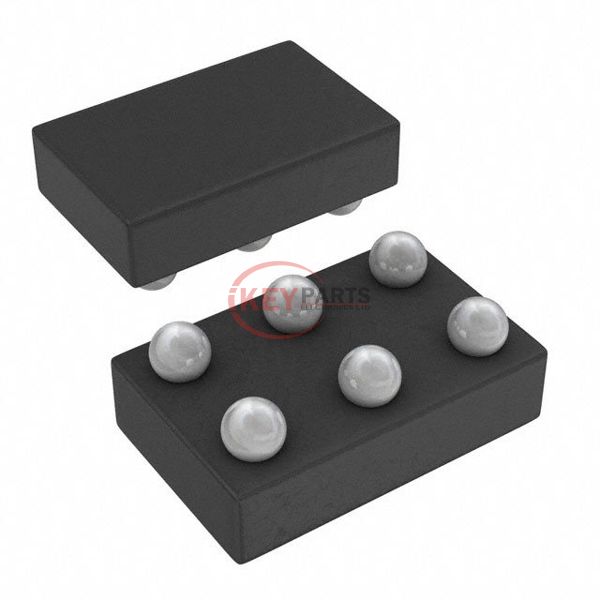

SN74LVC1G3157YZPR

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments SN74LVC1G3157YZPR

Manufacturer :
Texas Instruments
Mfr. Part # :
SN74LVC1G3157YZPR
Description
IC SWITCH SPDT 6DSBGA
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SN74LVC1G3157YZPR PDF
In Stock
642
SN74LVC1G3157YZPR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits1
On-State Resistance (Max)15Ohm
Channel-to-Channel Matching (ΔRon)100mOhm
Voltage - Supply, Single (V+)1.65V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)5.7ns, 3.8ns
-3db Bandwidth340MHz
Charge Injection7pC
Channel Capacitance (CS(off), CD(off))5.2pF
Current - Leakage (IS(off)) (Max)1µA
Crosstalk-54dB @ 10MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case6-XFBGA, DSBGA
Supplier Device Package6-DSBGA, 6-WCSP (1.4x0.9)
Request Quote Now
Request Quote Now

We can supply SN74LVC1G3157YZPR, use the request quote form to request SN74LVC1G3157YZPR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SN74LVC1G3157YZPR. The price and lead time for SN74LVC1G3157YZPR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SN74LVC1G3157YZPR. We look forward to working with you to establish long-term relations of cooperation.
