Series | - | |
Package | Tape & Reel (TR)Cut Tape (CT) | |
Part Status | Active | |
Switch Circuit | DPDT | |
Multiplexer/Demultiplexer Circuit | 2:2 | |
Number of Circuits | 4 | |
On-State Resistance (Max) | 5.8Ohm | |
Channel-to-Channel Matching (ΔRon) | 300mOhm | |
Voltage - Supply, Single (V+) | 1.65V ~ 4.3V | |
Voltage - Supply, Dual (V±) | - | |
Switch Time (Ton, Toff) (Max) | 15ns, 13ns | |
-3db Bandwidth | 800MHz | |
Charge Injection | 6.4pC | |
Channel Capacitance (CS(off), CD(off)) | 2pF | |
Current - Leakage (IS(off)) (Max) | 20nA | |
Crosstalk | -78dB @ 1MHz | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

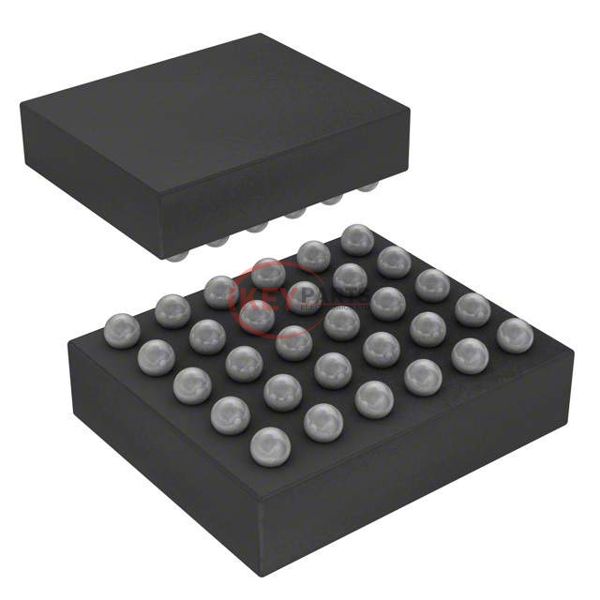

Package / Case | 30-WFBGA, FCBGA | |
Supplier Device Package | FlipChip 30 |
We can supply STG3820BJR, use the request quote form to request STG3820BJR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STG3820BJR. The price and lead time for STG3820BJR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STG3820BJR. We look forward to working with you to establish long-term relations of cooperation.
![]() |
