ISL84522IVZ

Enlarger

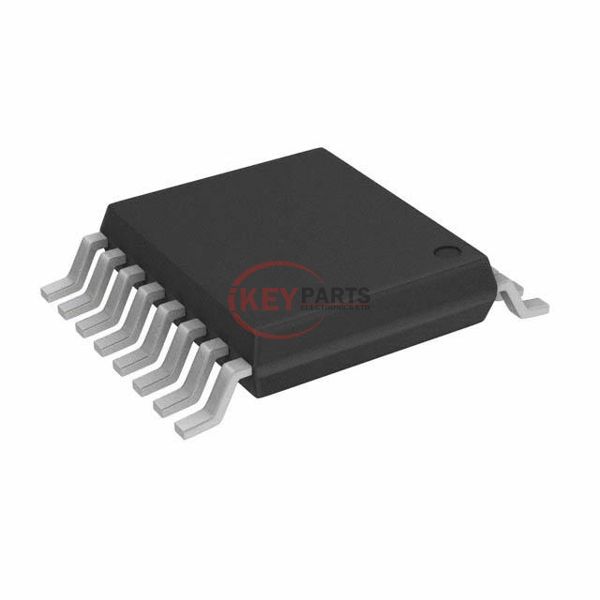

Lmages are for reference only See Product Specitications

Intersil (Renesas Electronics America) ISL84522IVZ

Manufacturer :
Intersil (Renesas Electronics America)
Mfr. Part # :
ISL84522IVZ
Description
IC SWITCH QUAD SPST 16TSSOP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ISL84522IVZ PDF
In Stock
669
ISL84522IVZ Tech Specifications
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)100Ohm
Channel-to-Channel Matching (ΔRon)1Ohm
Voltage - Supply, Single (V+)2V ~ 12V
Voltage - Supply, Dual (V±)±2V ~ 6V
Switch Time (Ton, Toff) (Max)80ns, 30ns
-3db Bandwidth-
Charge Injection1pC
Channel Capacitance (CS(off), CD(off))2pF, 2pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-90dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
Request Quote Now
Request Quote Now

We can supply ISL84522IVZ, use the request quote form to request ISL84522IVZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ISL84522IVZ. The price and lead time for ISL84522IVZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ISL84522IVZ. We look forward to working with you to establish long-term relations of cooperation.
