NTE2360

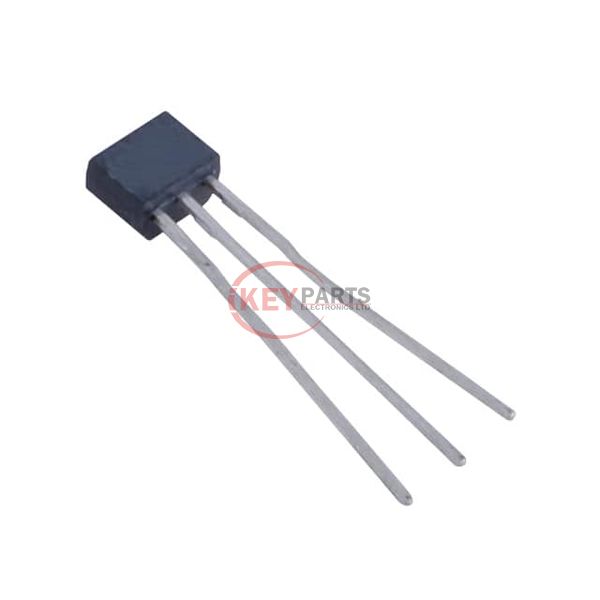

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE2360

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE2360
Description
T-PNP SI W/47K RESISTOR
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE2360 PDF
NTE2360 Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)47 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 250µA, 5mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition200 MHz
Power - Max300 mW
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Short Body
Supplier Device PackageTO-92S
Request Quote Now
Request Quote Now

We can supply NTE2360, use the request quote form to request NTE2360 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE2360. The price and lead time for NTE2360 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE2360. We look forward to working with you to establish long-term relations of cooperation.
