NTE2414

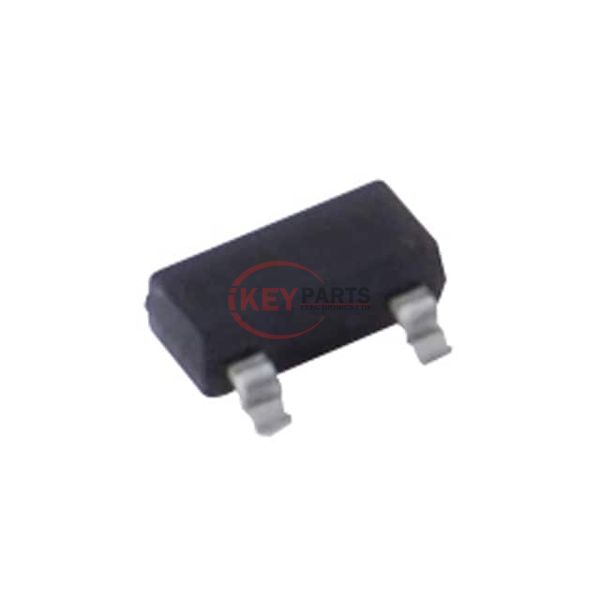

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE2414

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE2414
Description
T-NPN SI WITH 10K RES
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE2414 PDF
NTE2414 Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)10 kOhms
Resistor - Emitter Base (R2)10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition250 MHz
Power - Max200 mW
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23
Request Quote Now
Request Quote Now

We can supply NTE2414, use the request quote form to request NTE2414 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE2414. The price and lead time for NTE2414 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE2414. We look forward to working with you to establish long-term relations of cooperation.
