RN1317(TE85L,F)

Enlarger

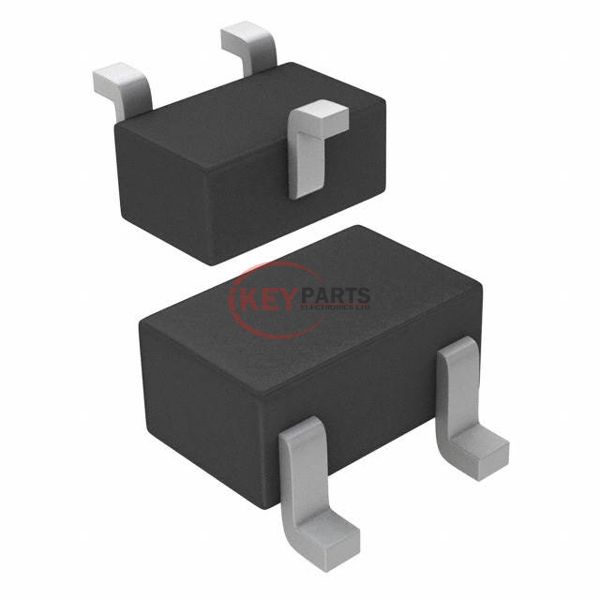

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation RN1317(TE85L,F)

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
RN1317(TE85L,F)
Description
TRANS PREBIAS NPN 50V 0.1A USM
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RN1317(TE85L,F) PDF
RN1317(TE85L,F) Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)10 kOhms
Resistor - Emitter Base (R2)4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 250µA, 5mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition250 MHz
Power - Max100 mW
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageUSM
Request Quote Now
Request Quote Now

We can supply RN1317(TE85L,F), use the request quote form to request RN1317(TE85L,F) pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RN1317(TE85L,F). The price and lead time for RN1317(TE85L,F) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RN1317(TE85L,F). We look forward to working with you to establish long-term relations of cooperation.
