DRC9143X0L

Enlarger

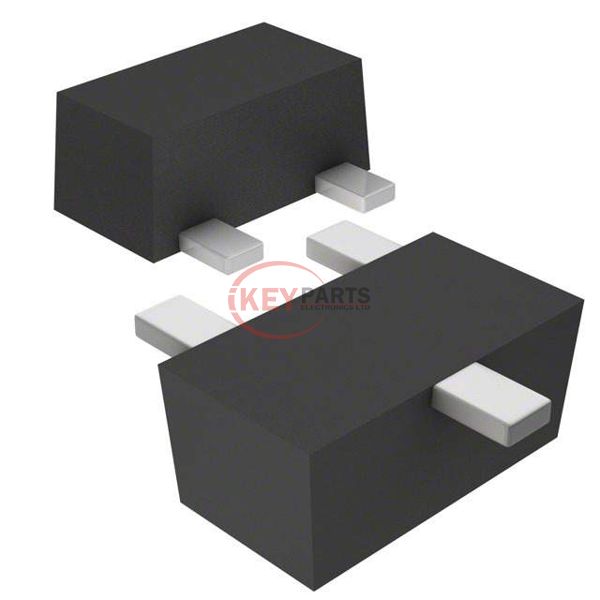

Lmages are for reference only See Product Specitications

Panasonic DRC9143X0L

Manufacturer :
Panasonic
Mfr. Part # :
DRC9143X0L
Description
TRANS PREBIAS NPN 125MW SSMINI3
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DRC9143X0L PDF
In Stock
361
DRC9143X0L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusDiscontinued at Digi-Key
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)4.7 kOhms
Resistor - Emitter Base (R2)10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max125 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSSMini3-F3-B
Request Quote Now
Request Quote Now

We can supply DRC9143X0L, use the request quote form to request DRC9143X0L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DRC9143X0L. The price and lead time for DRC9143X0L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DRC9143X0L. We look forward to working with you to establish long-term relations of cooperation.
