DRC5614T0L

Enlarger

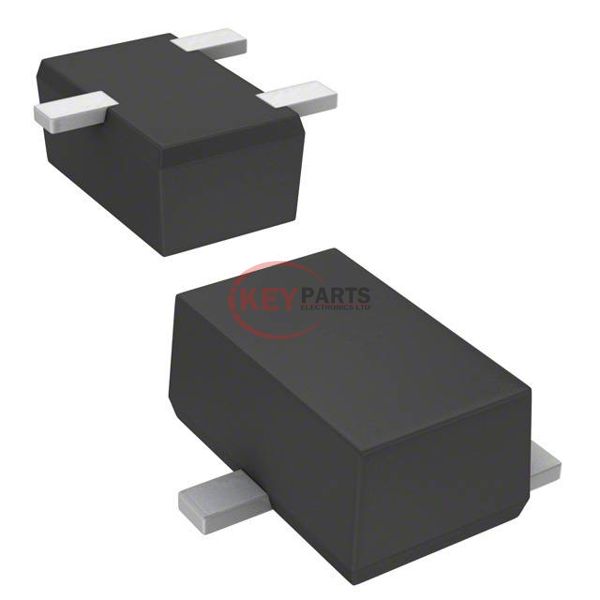

Lmages are for reference only See Product Specitications

Panasonic DRC5614T0L

Manufacturer :
Panasonic
Mfr. Part # :
DRC5614T0L
Description
TRANS PREBIAS NPN 150MW SMINI3
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DRC5614T0L PDF
DRC5614T0L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)600 mA
Voltage - Collector Emitter Breakdown (Max)20 V
Resistor - Base (R1)10 kOhms
Resistor - Emitter Base (R2)-
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 50mA, 5V
Vce Saturation (Max) @ Ib, Ic80mV @ 2.5mA, 50mA
Current - Collector Cutoff (Max)1µA (ICBO)
Frequency - Transition-
Power - Max150 mW
Mounting TypeSurface Mount
Package / CaseSC-85
Supplier Device PackageSMini3-F2-B
Request Quote Now
Request Quote Now

We can supply DRC5614T0L, use the request quote form to request DRC5614T0L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DRC5614T0L. The price and lead time for DRC5614T0L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DRC5614T0L. We look forward to working with you to establish long-term relations of cooperation.
