NSBA123JF3T5G

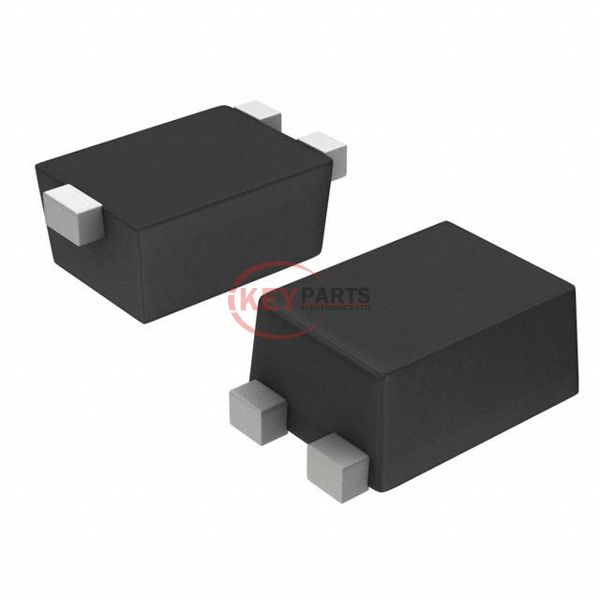

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics NSBA123JF3T5G

Manufacturer :
Rochester Electronics
Mfr. Part # :
NSBA123JF3T5G
Description
SMALL SIGNAL BIPOLAR TRANSISTOR,
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSBA123JF3T5G PDF
In Stock
160000
NSBA123JF3T5G Tech Specifications
Series-
PackageBulk
Part StatusActive
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)2.2 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max254 mW
Mounting TypeSurface Mount
Package / CaseSOT-1123
Supplier Device PackageSOT-1123
Request Quote Now
Request Quote Now

We can supply NSBA123JF3T5G, use the request quote form to request NSBA123JF3T5G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSBA123JF3T5G. The price and lead time for NSBA123JF3T5G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSBA123JF3T5G. We look forward to working with you to establish long-term relations of cooperation.
