SMUN2232T1G

Enlarger

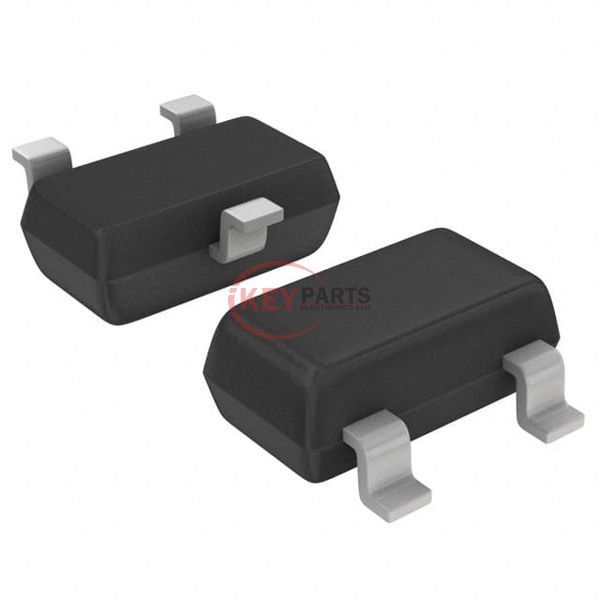

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor SMUN2232T1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
SMUN2232T1G
Description
TRANS PREBIAS NPN 50V 100MA SC59
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SMUN2232T1G PDF
SMUN2232T1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)4.7 kOhms
Resistor - Emitter Base (R2)4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 1mA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max230 mW
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSC-59
Request Quote Now
Request Quote Now

We can supply SMUN2232T1G, use the request quote form to request SMUN2232T1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMUN2232T1G. The price and lead time for SMUN2232T1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SMUN2232T1G. We look forward to working with you to establish long-term relations of cooperation.
