NTE2417

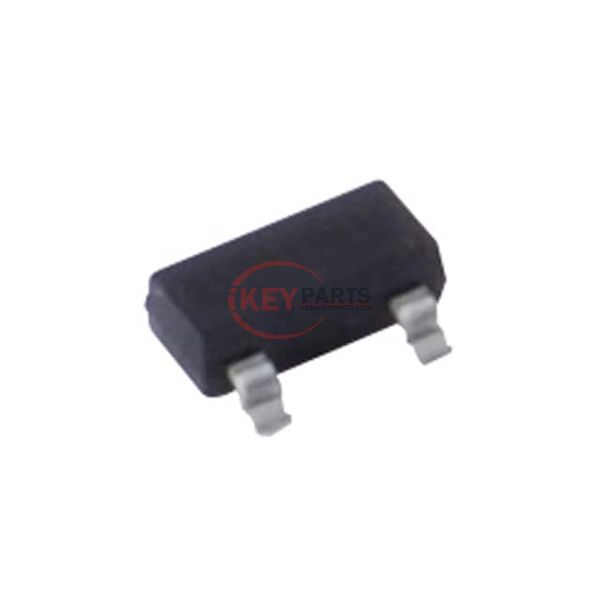

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE2417

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE2417
Description
T-PNP SI WITH 22K RES
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE2417 PDF
In Stock
1655
NTE2417 Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)22 kOhms
Resistor - Emitter Base (R2)22 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition200 MHz
Power - Max200 mW
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23
Request Quote Now
Request Quote Now

We can supply NTE2417, use the request quote form to request NTE2417 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE2417. The price and lead time for NTE2417 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE2417. We look forward to working with you to establish long-term relations of cooperation.
