PDTC114TM,315

Enlarger

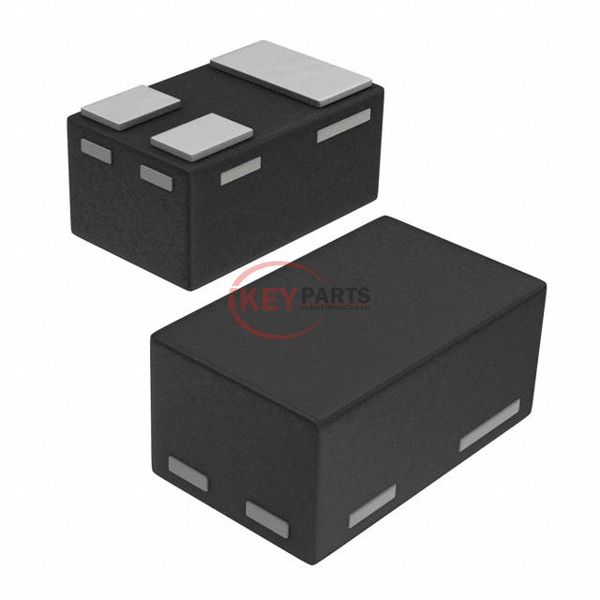

Lmages are for reference only See Product Specitications

Rochester Electronics PDTC114TM,315

Manufacturer :
Rochester Electronics
Mfr. Part # :
PDTC114TM,315
Description
SMALL SIGNAL BIPOLAR TRANSISTOR,
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PDTC114TM,315 PDF
In Stock
205
PDTC114TM,315 Tech Specifications
Series-
PackageBulk
Part StatusActive
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)10 kOhms
Resistor - Emitter Base (R2)-
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 1mA, 5V
Vce Saturation (Max) @ Ib, Ic150mV @ 500µA, 10mA
Current - Collector Cutoff (Max)1µA
Frequency - Transition-
Power - Max250 mW
Mounting TypeSurface Mount
Package / CaseSC-101, SOT-883
Supplier Device PackageDFN1006-3
Request Quote Now
Request Quote Now

We can supply PDTC114TM,315, use the request quote form to request PDTC114TM,315 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PDTC114TM,315. The price and lead time for PDTC114TM,315 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PDTC114TM,315. We look forward to working with you to establish long-term relations of cooperation.
