PDTB143XUF

Enlarger

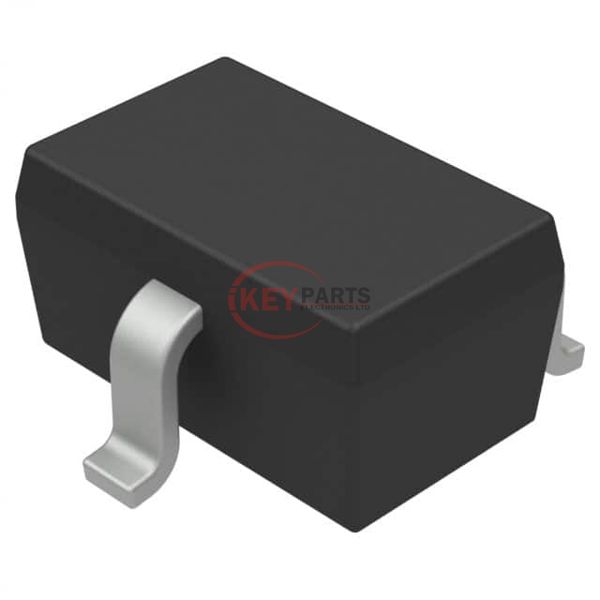

Lmages are for reference only See Product Specitications

Nexperia PDTB143XUF

Manufacturer :
Nexperia
Mfr. Part # :
PDTB143XUF
Description
TRANS PREBIAS PNP 0.425W
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PDTB143XUF PDF
PDTB143XUF Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)4.7 kOhms
Resistor - Emitter Base (R2)10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce70 @ 50mA, 5V
Vce Saturation (Max) @ Ib, Ic100mV @ 2.5mA, 50mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition140 MHz
Power - Max300 mW
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
Request Quote Now
Request Quote Now

We can supply PDTB143XUF, use the request quote form to request PDTB143XUF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PDTB143XUF. The price and lead time for PDTB143XUF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PDTB143XUF. We look forward to working with you to establish long-term relations of cooperation.
