BAV756S,115

Enlarger

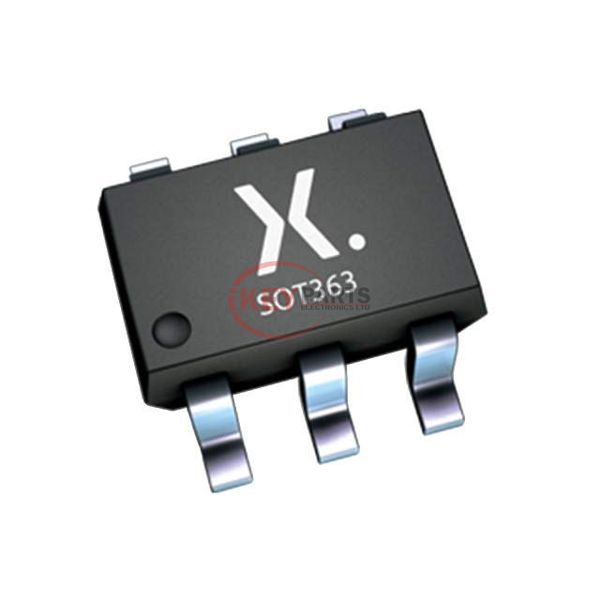

Lmages are for reference only See Product Specitications

Nexperia BAV756S,115

Manufacturer :
Nexperia
Mfr. Part # :
BAV756S,115
Description
DIODE ARRAY GP 90V 250MA 6TSSOP
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAV756S,115 PDF
BAV756S,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration2 Pair CA + CC
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)90 V
Current - Average Rectified (Io) (per Diode)250mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr500 nA @ 80 V
Operating Temperature - Junction150°C (Max)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device Package6-TSSOP
Request Quote Now
Request Quote Now

We can supply BAV756S,115, use the request quote form to request BAV756S,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAV756S,115. The price and lead time for BAV756S,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAV756S,115. We look forward to working with you to establish long-term relations of cooperation.
