BAT120A,115

Enlarger

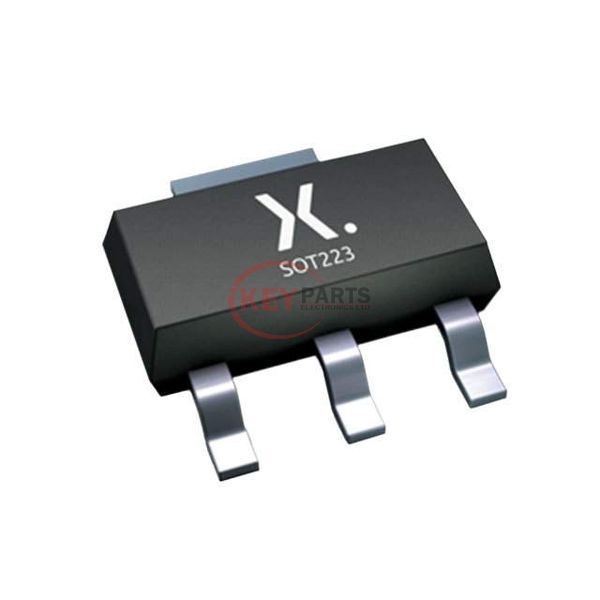

Lmages are for reference only See Product Specitications

Nexperia BAT120A,115

Manufacturer :
Nexperia
Mfr. Part # :
BAT120A,115
Description
DIODE ARRAY SCHOTTKY 25V SOT223
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT120A,115 PDF
BAT120A,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration1 Pair Common Anode
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)25 V
Current - Average Rectified (Io) (per Diode)1A (DC)
Voltage - Forward (Vf) (Max) @ If450 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr1 mA @ 25 V
Operating Temperature - Junction125°C (Max)
Mounting TypeSurface Mount
Package / CaseTO-261-4, TO-261AA
Supplier Device PackageSOT-223
Request Quote Now
Request Quote Now

We can supply BAT120A,115, use the request quote form to request BAT120A,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT120A,115. The price and lead time for BAT120A,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT120A,115. We look forward to working with you to establish long-term relations of cooperation.
