Series | - | |
Package | Tape & Reel (TR) | |
Part Status | Active | |
Diode Configuration | 1 Pair Common Anode | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 70 V | |
Current - Average Rectified (Io) (per Diode) | 200mA (DC) | |
Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | 6 ns | |
Current - Reverse Leakage @ Vr | 2.5 µA @ 70 V | |
Operating Temperature - Junction | -55°C ~ 150°C | |
Mounting Type | Surface Mount | |

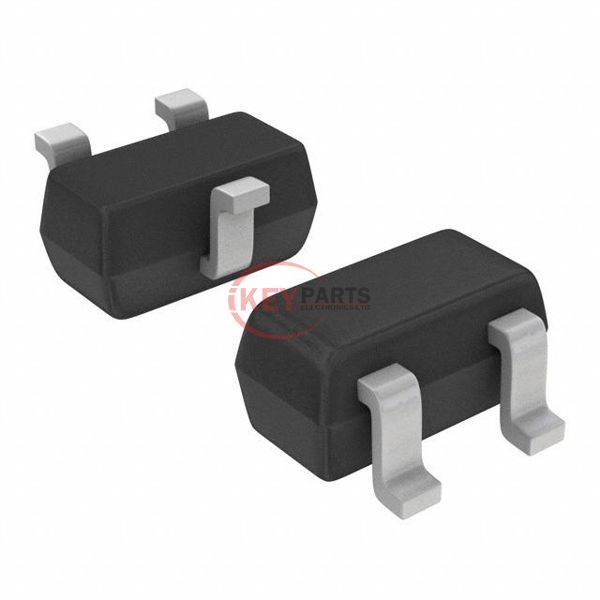

Package / Case | SC-75, SOT-416 | |
Supplier Device Package | SC-75, SOT-416 |
We can supply SBAW56TT1G, use the request quote form to request SBAW56TT1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SBAW56TT1G. The price and lead time for SBAW56TT1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SBAW56TT1G. We look forward to working with you to establish long-term relations of cooperation.
![]() |
