BAW56E6433

Enlarger

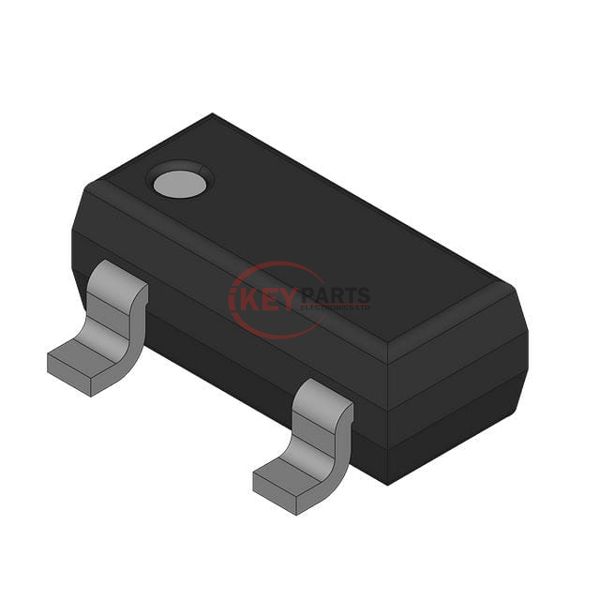

Lmages are for reference only See Product Specitications

Rochester Electronics BAW56E6433

Manufacturer :
Rochester Electronics
Mfr. Part # :
BAW56E6433
Description
HIGH SPEED SWITCHING DIODE
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAW56E6433 PDF
BAW56E6433 Tech Specifications
Series-
PackageBulk
Part StatusActive
Diode Configuration1 Pair Common Anode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)80 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr150 nA @ 70 V
Operating Temperature - Junction150°C (Max)
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23-3
Request Quote Now
Request Quote Now

We can supply BAW56E6433, use the request quote form to request BAW56E6433 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAW56E6433. The price and lead time for BAW56E6433 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAW56E6433. We look forward to working with you to establish long-term relations of cooperation.
