NSVBAT54SWT1G

Enlarger

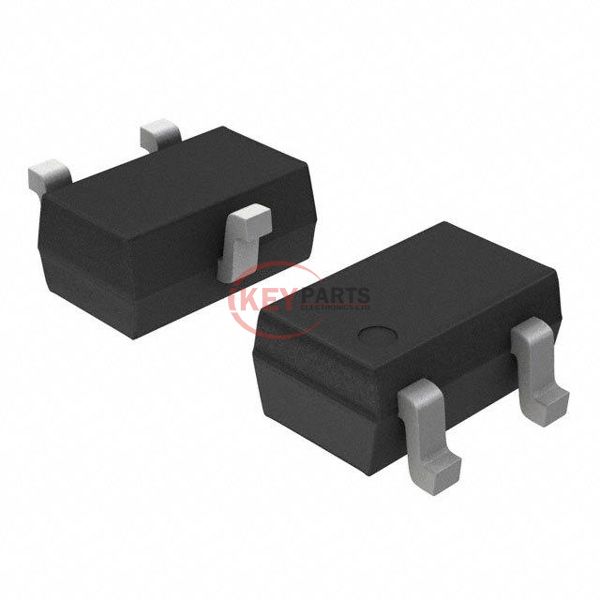

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NSVBAT54SWT1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NSVBAT54SWT1G
Description
DIODE ARRAY SCHOTTKY 30V SOT323
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NSVBAT54SWT1G PDF
NSVBAT54SWT1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration1 Pair Series Connection
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Operating Temperature - Junction-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
Request Quote Now
Request Quote Now

We can supply NSVBAT54SWT1G, use the request quote form to request NSVBAT54SWT1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NSVBAT54SWT1G. The price and lead time for NSVBAT54SWT1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NSVBAT54SWT1G. We look forward to working with you to establish long-term relations of cooperation.
