Series | - | |
Package | Bulk | |
Part Status | Obsolete | |
Diode Configuration | 1 Pair Common Anode | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 30 V | |
Current - Average Rectified (Io) (per Diode) | 200mA (DC) | |
Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | 5 ns | |
Current - Reverse Leakage @ Vr | 2 µA @ 25 V | |
Operating Temperature - Junction | -55°C ~ 125°C | |
Mounting Type | Surface Mount | |

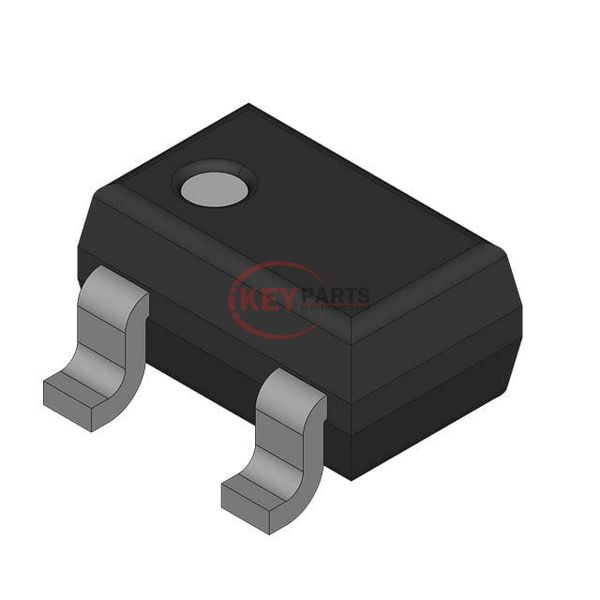

Package / Case | SC-70, SOT-323 | |
Supplier Device Package | SC-70 (SOT323) |
We can supply BAT54AWT1, use the request quote form to request BAT54AWT1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT54AWT1. The price and lead time for BAT54AWT1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT54AWT1. We look forward to working with you to establish long-term relations of cooperation.
![]() |
