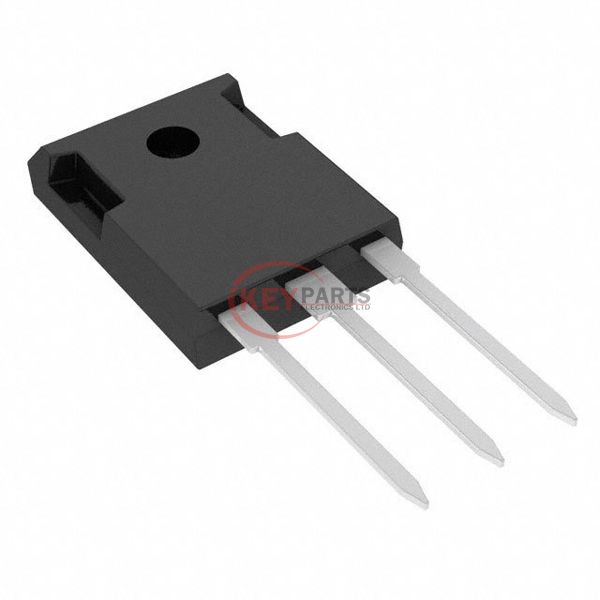

UG30BPT-E3/45

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division UG30BPT-E3/45

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
UG30BPT-E3/45
Description
DIODE ARRAY GP 100V 30A TO3P
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UG30BPT-E3/45 PDF
UG30BPT-E3/45 Tech Specifications
Series-
PackageTube
Part StatusActive
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io) (per Diode)30A
Voltage - Forward (Vf) (Max) @ If1.15 V @ 30 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)35 ns
Current - Reverse Leakage @ Vr15 µA @ 100 V
Operating Temperature - Junction-65°C ~ 150°C
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now

We can supply UG30BPT-E3/45, use the request quote form to request UG30BPT-E3/45 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UG30BPT-E3/45. The price and lead time for UG30BPT-E3/45 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UG30BPT-E3/45. We look forward to working with you to establish long-term relations of cooperation.
