BAW56W,135

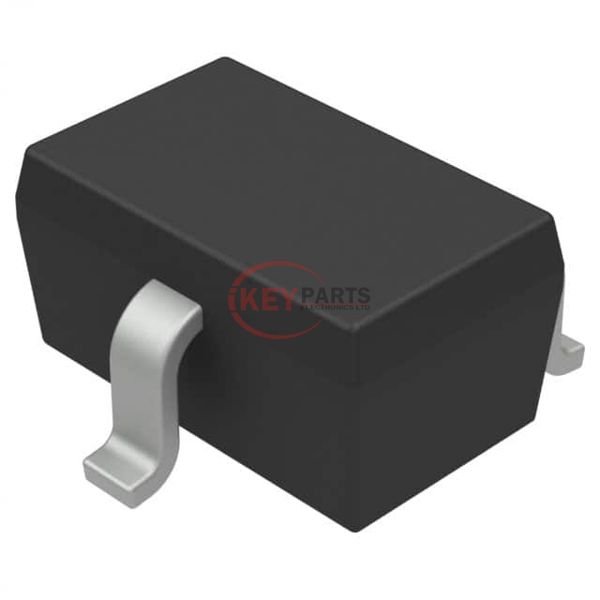

Enlarger

Lmages are for reference only See Product Specitications

Nexperia BAW56W,135

Manufacturer :
Nexperia
Mfr. Part # :
BAW56W,135
Description
DIODE ARRAY GP 90V 150MA SOT323
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAW56W,135 PDF
In Stock
826
BAW56W,135 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration1 Pair Common Anode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)90 V
Current - Average Rectified (Io) (per Diode)150mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr500 nA @ 80 V
Operating Temperature - Junction150°C (Max)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSOT-323
Request Quote Now
Request Quote Now

We can supply BAW56W,135, use the request quote form to request BAW56W,135 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAW56W,135. The price and lead time for BAW56W,135 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAW56W,135. We look forward to working with you to establish long-term relations of cooperation.
