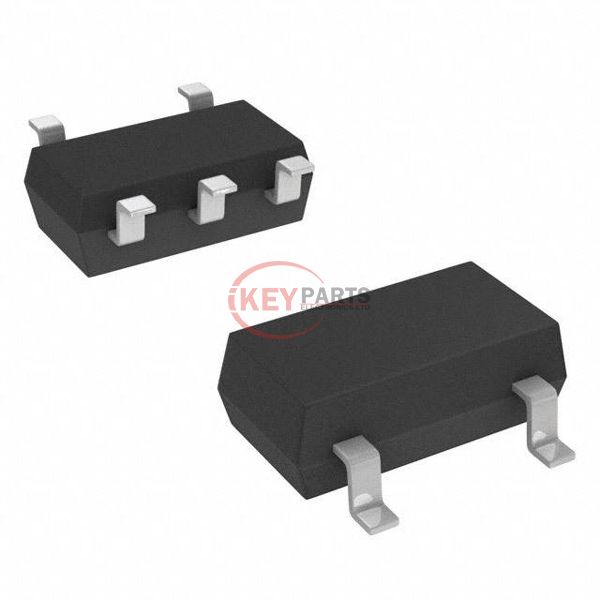

1SS309(TE85L,F)

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation 1SS309(TE85L,F)

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
1SS309(TE85L,F)
Description
DIODE ARRAY GP 80V 100MA SMV
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
1SS309(TE85L,F) PDF
1SS309(TE85L,F) Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration4 Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)80 V
Current - Average Rectified (Io) (per Diode)100mA
Voltage - Forward (Vf) (Max) @ If1.2 V @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr500 nA @ 80 V
Operating Temperature - Junction125°C (Max)
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSMV
Request Quote Now
Request Quote Now

We can supply 1SS309(TE85L,F), use the request quote form to request 1SS309(TE85L,F) pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1SS309(TE85L,F). The price and lead time for 1SS309(TE85L,F) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1SS309(TE85L,F). We look forward to working with you to establish long-term relations of cooperation.
