BAW56TT1G

Enlarger

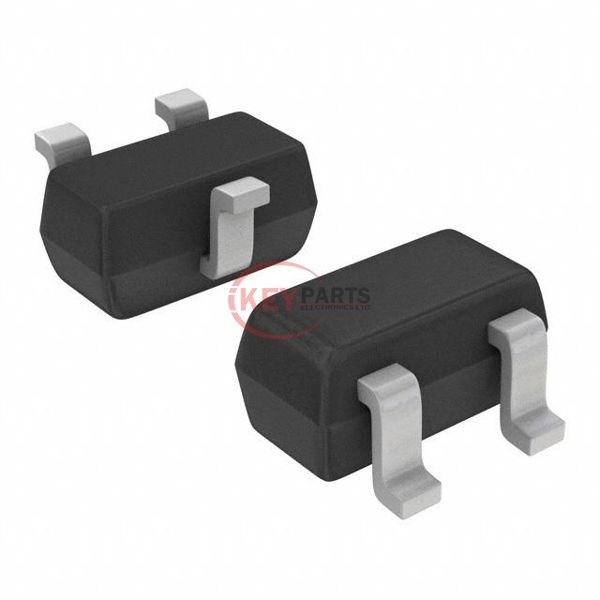

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor BAW56TT1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
BAW56TT1G
Description
DIODE ARRAY GP 70V 200MA SC75
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAW56TT1G PDF
BAW56TT1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration1 Pair Common Anode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)70 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)6 ns
Current - Reverse Leakage @ Vr2.5 µA @ 70 V
Operating Temperature - Junction-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseSC-75, SOT-416
Supplier Device PackageSC-75, SOT-416
Request Quote Now
Request Quote Now

We can supply BAW56TT1G, use the request quote form to request BAW56TT1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAW56TT1G. The price and lead time for BAW56TT1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAW56TT1G. We look forward to working with you to establish long-term relations of cooperation.
