VS-10CSH01HM3/86A

Enlarger

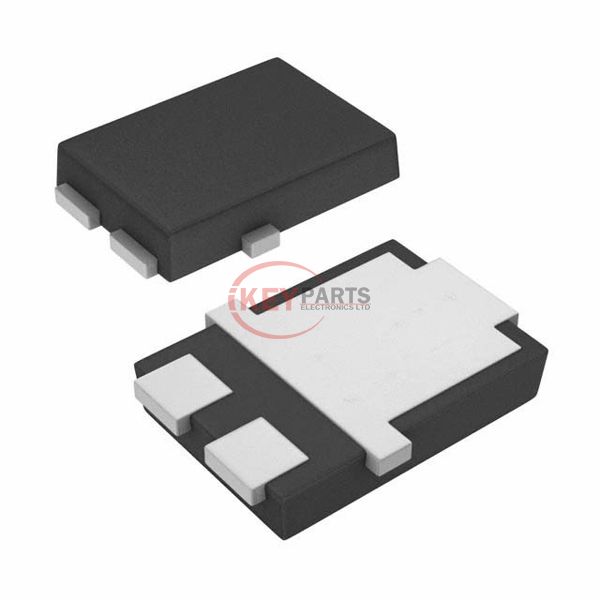

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division VS-10CSH01HM3/86A

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
VS-10CSH01HM3/86A
Description
DIODE ARRAY GP 100V 5A TO277A
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
VS-10CSH01HM3/86A PDF
In Stock
567
VS-10CSH01HM3/86A Tech Specifications
SeriesAutomotive, AEC-Q101, FRED Pt®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)100 V
Current - Average Rectified (Io) (per Diode)5A
Voltage - Forward (Vf) (Max) @ If980 mV @ 5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)25 ns
Current - Reverse Leakage @ Vr2 µA @ 100 V
Operating Temperature - Junction-55°C ~ 175°C
Mounting TypeSurface Mount
Package / CaseTO-277, 3-PowerDFN
Supplier Device PackageTO-277A (SMPC)
Request Quote Now
Request Quote Now

We can supply VS-10CSH01HM3/86A, use the request quote form to request VS-10CSH01HM3/86A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VS-10CSH01HM3/86A. The price and lead time for VS-10CSH01HM3/86A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VS-10CSH01HM3/86A. We look forward to working with you to establish long-term relations of cooperation.
