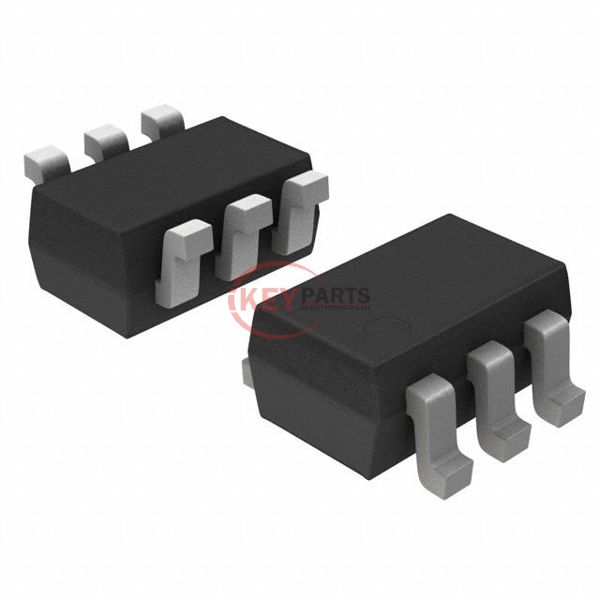

BAW56DW-TP

Enlarger

Lmages are for reference only See Product Specitications

Micro Commercial Components (MCC) BAW56DW-TP

Manufacturer :
Micro Commercial Components (MCC)
Mfr. Part # :
BAW56DW-TP
Description
DIODE ARRAY GP 75V 150MA SOT363
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAW56DW-TP PDF
BAW56DW-TP Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration2 Pair Common Anode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)75 V
Current - Average Rectified (Io) (per Diode)150mA
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr2.5 µA @ 75 V
Operating Temperature - Junction-55°C ~ 150°C
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSOT-363
Request Quote Now
Request Quote Now

We can supply BAW56DW-TP, use the request quote form to request BAW56DW-TP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAW56DW-TP. The price and lead time for BAW56DW-TP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAW56DW-TP. We look forward to working with you to establish long-term relations of cooperation.
