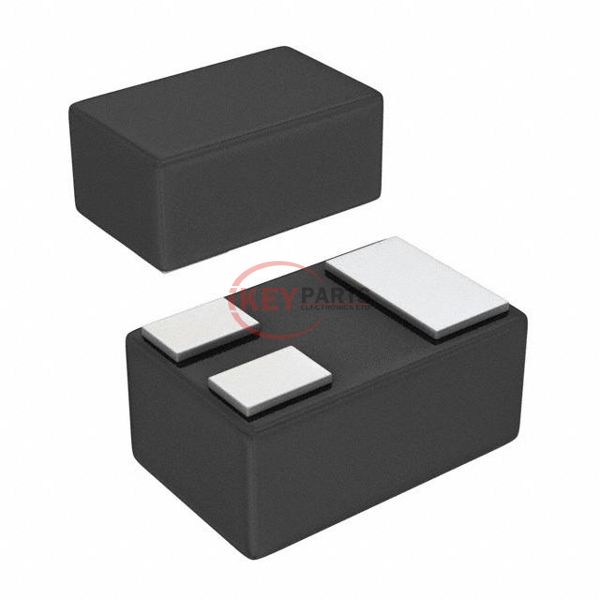

BAV70LP-7

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) BAV70LP-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
BAV70LP-7
Description
DIODE ARRAY GP 75V 150MA 3XDFN
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAV70LP-7 PDF
BAV70LP-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration1 Pair Common Cathode
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)75 V
Current - Average Rectified (Io) (per Diode)150mA
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)4 ns
Current - Reverse Leakage @ Vr2.5 µA @ 75 V
Operating Temperature - Junction-65°C ~ 150°C
Mounting TypeSurface Mount
Package / Case3-UFDFN
Supplier Device PackageX1-DFN1006-3
Request Quote Now
Request Quote Now

We can supply BAV70LP-7, use the request quote form to request BAV70LP-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAV70LP-7. The price and lead time for BAV70LP-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAV70LP-7. We look forward to working with you to establish long-term relations of cooperation.
