BAT54V-7

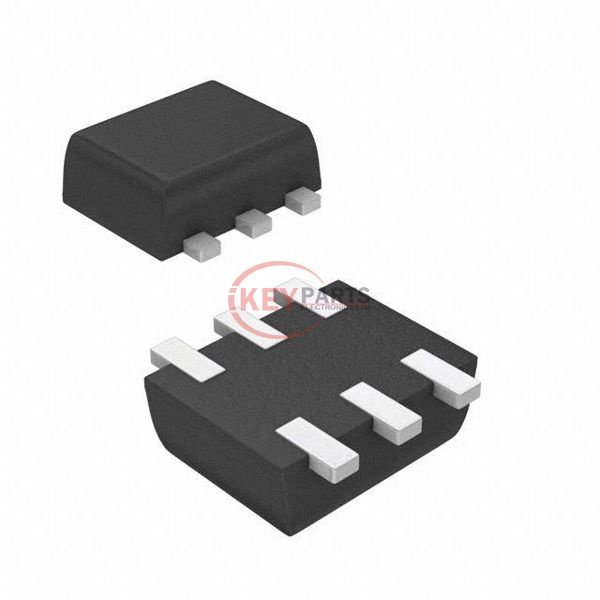

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) BAT54V-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
BAT54V-7
Description
DIODE ARRAY SCHOTTKY 30V SOT563
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT54V-7 PDF
BAT54V-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration2 Independent
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If1 V @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)5 ns
Current - Reverse Leakage @ Vr2 µA @ 25 V
Operating Temperature - Junction-65°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSOT-563
Request Quote Now
Request Quote Now

We can supply BAT54V-7, use the request quote form to request BAT54V-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT54V-7. The price and lead time for BAT54V-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT54V-7. We look forward to working with you to establish long-term relations of cooperation.
