LLG2Z561MELZ25

Enlarger

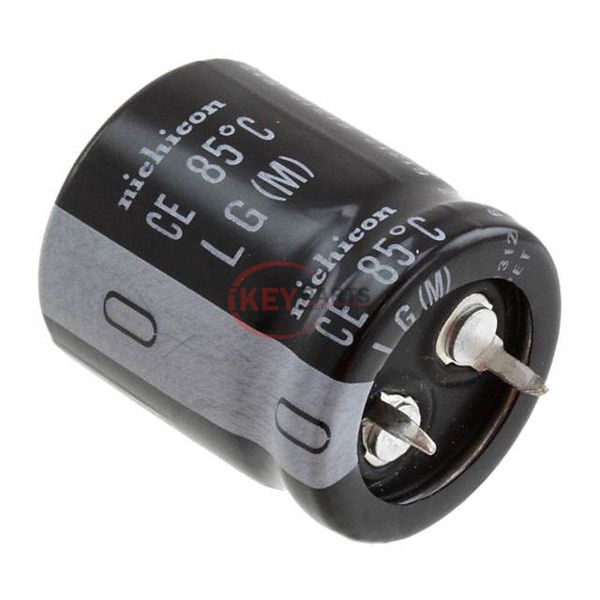

Lmages are for reference only See Product Specitications

Nichicon LLG2Z561MELZ25

Manufacturer :
Nichicon
Mfr. Part # :
LLG2Z561MELZ25
Description
CAP ALUM 560UF 20% 180V SNAP
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
LLG2Z561MELZ25 PDF
LLG2Z561MELZ25 Tech Specifications
SeriesLLG
PackageBulk
Part StatusActive
Capacitance560 µF
Tolerance±20%
Voltage - Rated180 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency1.8 A @ 120 Hz
Ripple Current @ High Frequency2.7 A @ 50 kHz
Impedance-
Lead Spacing0.394" (10.00mm)
Size / Dimension0.866" Dia (22.00mm)
Height - Seated (Max)1.063" (27.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can - Snap-In
Request Quote Now
Request Quote Now

We can supply LLG2Z561MELZ25, use the request quote form to request LLG2Z561MELZ25 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LLG2Z561MELZ25. The price and lead time for LLG2Z561MELZ25 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LLG2Z561MELZ25. We look forward to working with you to establish long-term relations of cooperation.
