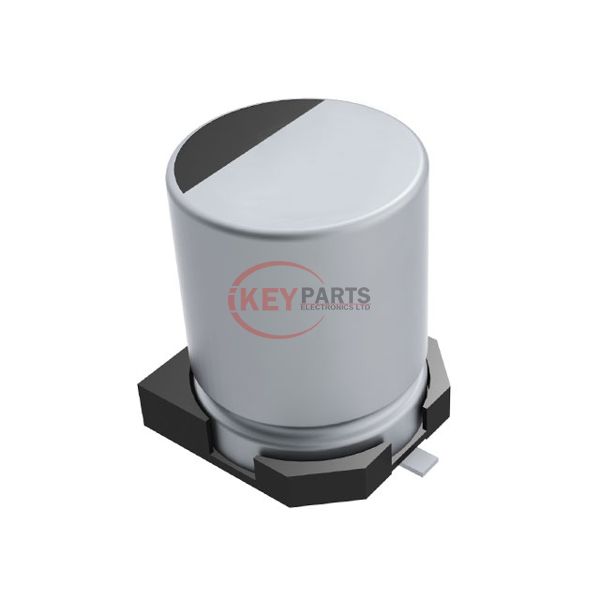

EDK226M100S9PAA

Enlarger

Lmages are for reference only See Product Specitications

KEMET EDK226M100S9PAA

Manufacturer :
KEMET
Mfr. Part # :
EDK226M100S9PAA
Description
CAP ALUM 22UF 20% 100V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EDK226M100S9PAA PDF
EDK226M100S9PAA Tech Specifications
SeriesEDK
PackageTape & Reel (TR)
Part StatusActive
Capacitance22 µF
Tolerance±20%
Voltage - Rated100 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency85 mA @ 120 Hz
Ripple Current @ High Frequency106.25 mA @ 10 kHz
Impedance-
Lead Spacing-
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.413" (10.50mm)
Surface Mount Land Size0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EDK226M100S9PAA, use the request quote form to request EDK226M100S9PAA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EDK226M100S9PAA. The price and lead time for EDK226M100S9PAA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EDK226M100S9PAA. We look forward to working with you to establish long-term relations of cooperation.
