EDH226M100S9MAA

Enlarger

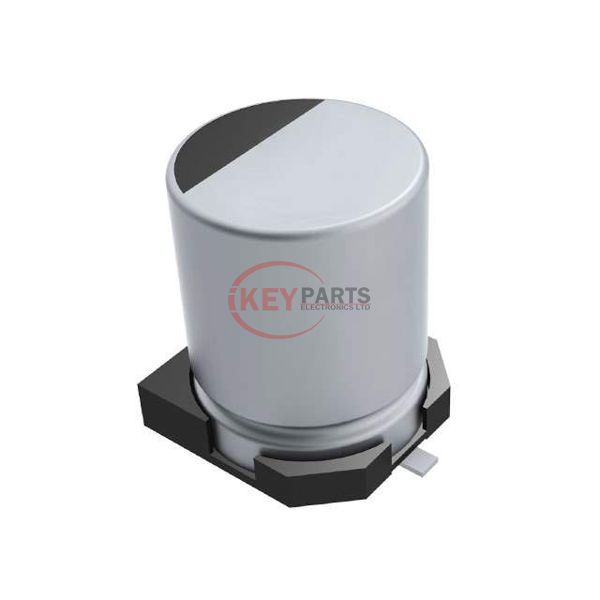

Lmages are for reference only See Product Specitications

KEMET EDH226M100S9MAA

Manufacturer :
KEMET
Mfr. Part # :
EDH226M100S9MAA
Description
CAP ALUM 22UF 20% 100V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EDH226M100S9MAA PDF
In Stock
790
EDH226M100S9MAA Tech Specifications
SeriesEDH
PackageTape & Reel (TR)
Part StatusActive
Capacitance22 µF
Tolerance±20%
Voltage - Rated100 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency100 mA @ 120 Hz
Ripple Current @ High Frequency125 mA @ 10 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.413" (10.50mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EDH226M100S9MAA, use the request quote form to request EDH226M100S9MAA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EDH226M100S9MAA. The price and lead time for EDH226M100S9MAA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EDH226M100S9MAA. We look forward to working with you to establish long-term relations of cooperation.
