EEV-TG1J100P

Enlarger

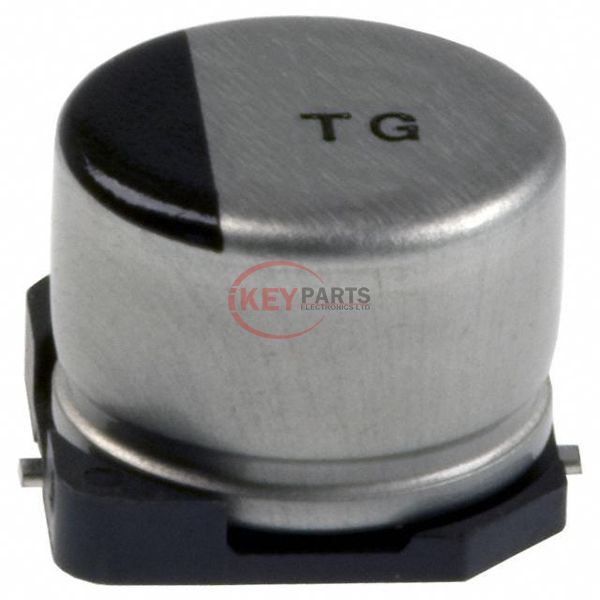

Lmages are for reference only See Product Specitications

Panasonic EEV-TG1J100P

Manufacturer :
Panasonic
Mfr. Part # :
EEV-TG1J100P
Description
CAP ALUM 10UF 20% 63V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEV-TG1J100P PDF
EEV-TG1J100P Tech Specifications
SeriesTG
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Capacitance10 µF
Tolerance±20%
Voltage - Rated63 V
ESR (Equivalent Series Resistance)2.2Ohm @ 100kHz
Lifetime @ Temp.1000 Hrs @ 125°C
Operating Temperature-40°C ~ 125°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency35.75 mA @ 120 Hz
Ripple Current @ High Frequency55 mA @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.244" (6.20mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EEV-TG1J100P, use the request quote form to request EEV-TG1J100P pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEV-TG1J100P. The price and lead time for EEV-TG1J100P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEV-TG1J100P. We look forward to working with you to establish long-term relations of cooperation.
