EDH685M025A9BAA

Enlarger

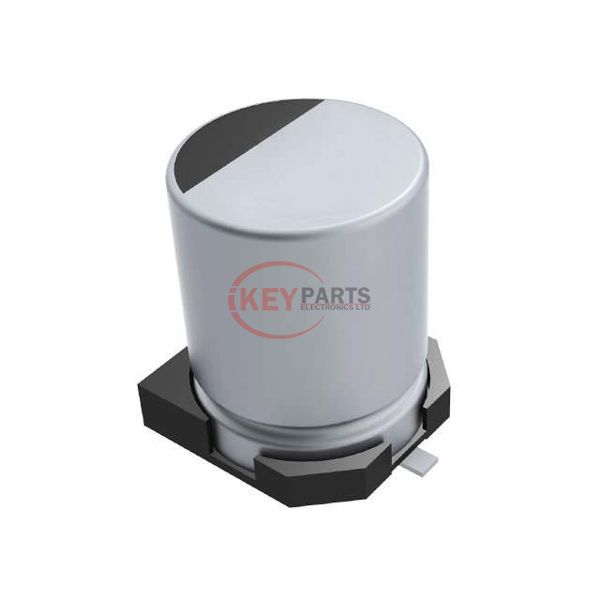

Lmages are for reference only See Product Specitications

KEMET EDH685M025A9BAA

Manufacturer :
KEMET
Mfr. Part # :
EDH685M025A9BAA
Description
CAP ALUM 6.8UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EDH685M025A9BAA PDF
In Stock
265
EDH685M025A9BAA Tech Specifications
SeriesEDH
PackageTape & Reel (TR)
Part StatusActive
Capacitance6.8 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency25 mA @ 120 Hz
Ripple Current @ High Frequency31.25 mA @ 10 kHz
Impedance-
Lead Spacing-
Size / Dimension0.157" Dia (4.00mm)
Height - Seated (Max)0.222" (5.65mm)
Surface Mount Land Size0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EDH685M025A9BAA, use the request quote form to request EDH685M025A9BAA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EDH685M025A9BAA. The price and lead time for EDH685M025A9BAA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EDH685M025A9BAA. We look forward to working with you to establish long-term relations of cooperation.
