AFC685M25B12T-F

Enlarger

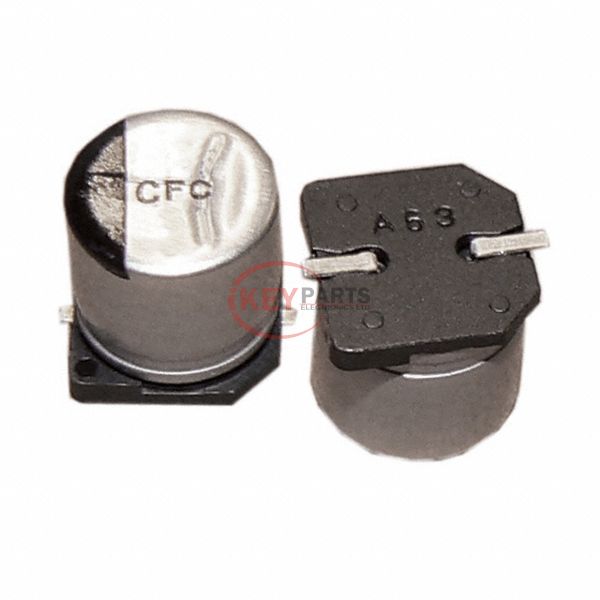

Lmages are for reference only See Product Specitications

Cornell Dubilier Electronics AFC685M25B12T-F

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
AFC685M25B12T-F
Description
CAP ALUM 6.8UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AFC685M25B12T-F PDF
In Stock
960
AFC685M25B12T-F Tech Specifications
SeriesAFC
PackageTape & Reel (TR)
Part StatusActive
Capacitance6.8 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)34.1Ohm @ 120Hz
Lifetime @ Temp.1000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive, Bypass, Decoupling
Ripple Current @ Low Frequency45 mA @ 120 Hz
Ripple Current @ High Frequency60 mA @ 100 kHz
Impedance3 Ohms
Lead Spacing-
Size / Dimension0.157" Dia (4.00mm)
Height - Seated (Max)0.213" (5.40mm)
Surface Mount Land Size0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply AFC685M25B12T-F, use the request quote form to request AFC685M25B12T-F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AFC685M25B12T-F. The price and lead time for AFC685M25B12T-F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AFC685M25B12T-F. We look forward to working with you to establish long-term relations of cooperation.
