UCL1E561MNL1GS

Enlarger

Lmages are for reference only See Product Specitications

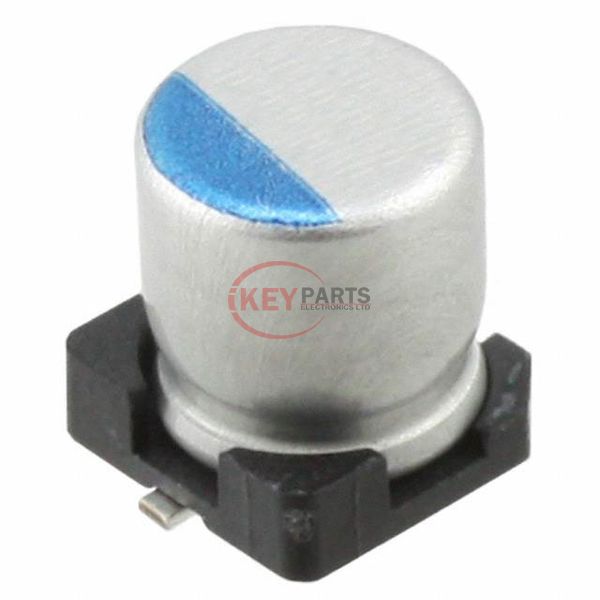

Nichicon UCL1E561MNL1GS

Manufacturer :
Nichicon
Mfr. Part # :
UCL1E561MNL1GS
Description
CAP ALUM 560UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UCL1E561MNL1GS PDF
In Stock
15209
UCL1E561MNL1GS Tech Specifications
SeriesUCL
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance560 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency425 mA @ 120 Hz
Ripple Current @ High Frequency850 mA @ 100 kHz
Impedance80 mOhms
Lead Spacing-
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.394" (10.00mm)
Surface Mount Land Size0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply UCL1E561MNL1GS, use the request quote form to request UCL1E561MNL1GS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UCL1E561MNL1GS. The price and lead time for UCL1E561MNL1GS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UCL1E561MNL1GS. We look forward to working with you to establish long-term relations of cooperation.
