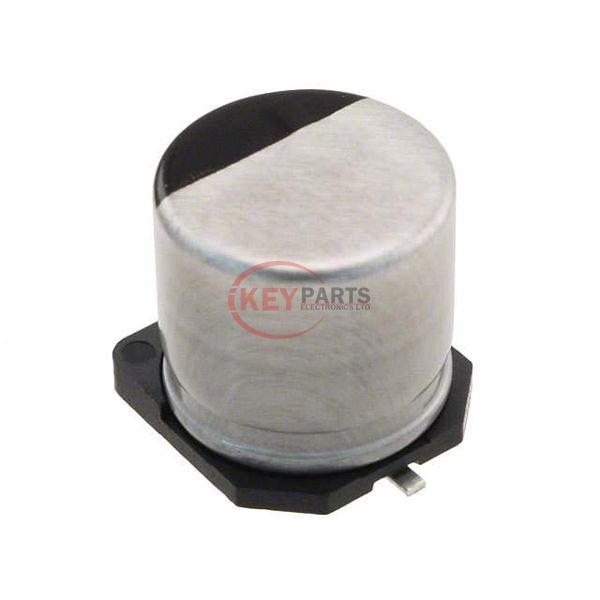

EEE-TP1J561M

Enlarger

Lmages are for reference only See Product Specitications

Panasonic EEE-TP1J561M

Manufacturer :
Panasonic
Mfr. Part # :
EEE-TP1J561M
Description
CAP ALUM 560UF 20% 63V RADIAL
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEE-TP1J561M PDF
In Stock
100
EEE-TP1J561M Tech Specifications
SeriesTP
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance560 µF
Tolerance±20%
Voltage - Rated63 V
ESR (Equivalent Series Resistance)100mOhm @ 100kHz
Lifetime @ Temp.3000 Hrs @ 125°C
Operating Temperature-55°C ~ 125°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive, High Temperature Reflow
Ripple Current @ Low Frequency1.425 A @ 120 Hz
Ripple Current @ High Frequency1.9 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.630" Dia (16.00mm)
Height - Seated (Max)0.669" (17.00mm)
Surface Mount Land Size0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EEE-TP1J561M, use the request quote form to request EEE-TP1J561M pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEE-TP1J561M. The price and lead time for EEE-TP1J561M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEE-TP1J561M. We look forward to working with you to establish long-term relations of cooperation.
