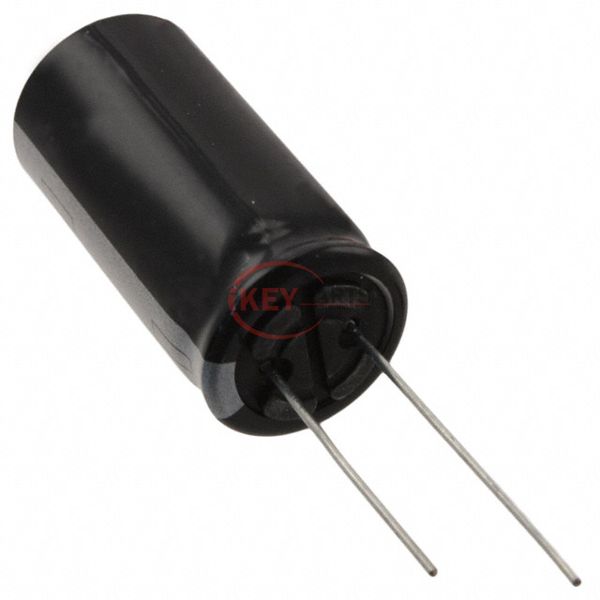

ECA-1CHG103

Enlarger

Lmages are for reference only See Product Specitications

Panasonic ECA-1CHG103

Manufacturer :
Panasonic
Mfr. Part # :
ECA-1CHG103
Description
CAP ALUM 10000UF 20% 16V RADIAL
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ECA-1CHG103 PDF
In Stock
378
ECA-1CHG103 Tech Specifications
SeriesNHG
PackageBulk
Part StatusActive
Capacitance10000 µF
Tolerance±20%
Voltage - Rated16 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency2.06 A @ 120 Hz
Ripple Current @ High Frequency2.369 A @ 100 kHz
Impedance-
Lead Spacing0.295" (7.50mm)
Size / Dimension0.709" Dia (18.00mm)
Height - Seated (Max)1.476" (37.50mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Request Quote Now
Request Quote Now

We can supply ECA-1CHG103, use the request quote form to request ECA-1CHG103 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECA-1CHG103. The price and lead time for ECA-1CHG103 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECA-1CHG103. We look forward to working with you to establish long-term relations of cooperation.
