AVE686M25X16T-F

Enlarger

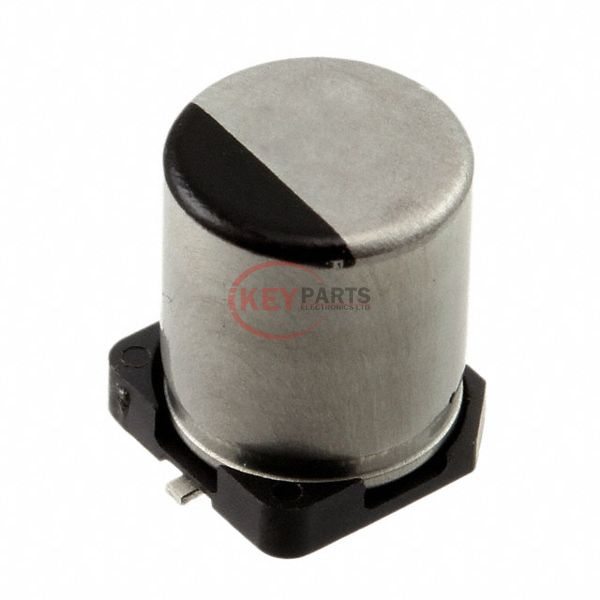

Lmages are for reference only See Product Specitications

Cornell Dubilier Electronics AVE686M25X16T-F

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
AVE686M25X16T-F
Description
CAP ALUM 68UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AVE686M25X16T-F PDF
In Stock
382
AVE686M25X16T-F Tech Specifications
SeriesAVE
PackageTape & Reel (TR)
Part StatusActive
Capacitance68 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)3.41Ohm @ 120Hz
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency109 mA @ 120 Hz
Ripple Current @ High Frequency152.6 mA @ 10 kHz
Impedance-
Lead Spacing-
Size / Dimension0.248" Dia (6.30mm)
Height - Seated (Max)0.315" (8.00mm)
Surface Mount Land Size0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply AVE686M25X16T-F, use the request quote form to request AVE686M25X16T-F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AVE686M25X16T-F. The price and lead time for AVE686M25X16T-F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AVE686M25X16T-F. We look forward to working with you to establish long-term relations of cooperation.
