AVE226M2AG24T-F

Enlarger

Lmages are for reference only See Product Specitications

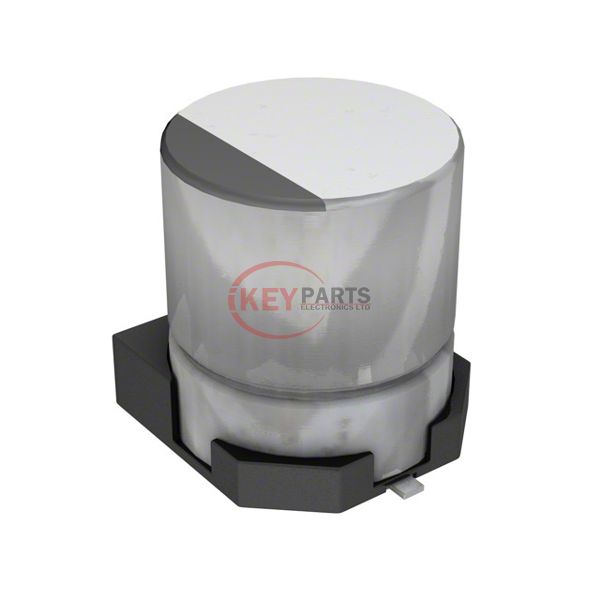

Cornell Dubilier Electronics AVE226M2AG24T-F

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
AVE226M2AG24T-F
Description
CAP ALUM 22UF 20% 100V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AVE226M2AG24T-F PDF
In Stock
541
AVE226M2AG24T-F Tech Specifications
SeriesAVE
PackageTape & Reel (TR)
Part StatusActive
Capacitance22 µF
Tolerance±20%
Voltage - Rated100 V
ESR (Equivalent Series Resistance)7.54Ohm @ 120Hz
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency189 mA @ 120 Hz
Ripple Current @ High Frequency283.5 mA @ 10 kHz
Impedance-
Lead Spacing-
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.413" (10.50mm)
Surface Mount Land Size0.409" L x 0.409" W (10.40mm x 10.40mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply AVE226M2AG24T-F, use the request quote form to request AVE226M2AG24T-F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AVE226M2AG24T-F. The price and lead time for AVE226M2AG24T-F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AVE226M2AG24T-F. We look forward to working with you to establish long-term relations of cooperation.
