ATB226M010

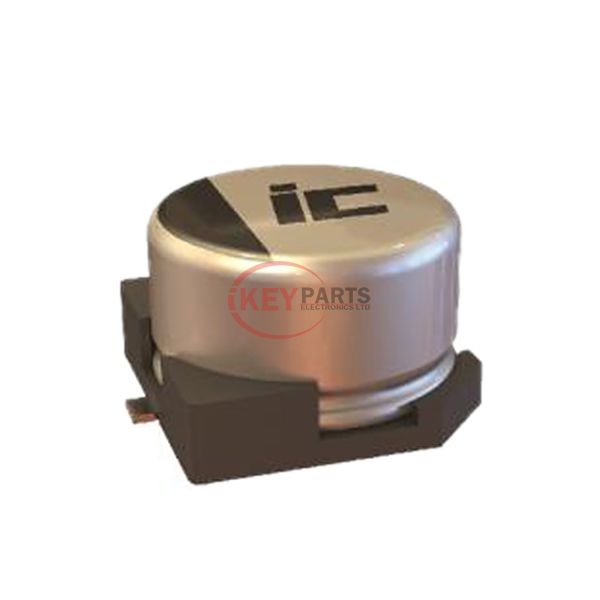

Enlarger

Lmages are for reference only See Product Specitications

Cornell Dubilier Electronics ATB226M010

Manufacturer :
Cornell Dubilier Electronics
Mfr. Part # :
ATB226M010
Description
CAP ALUM 22UF 20% 10V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ATB226M010 PDF
In Stock
639
ATB226M010 Tech Specifications
SeriesATB
PackageBulk
Part StatusActive
Capacitance22 µF
Tolerance±20%
Voltage - Rated10 V
ESR (Equivalent Series Resistance)15.67Ohm @ 120Hz
Lifetime @ Temp.3000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsBypass, Decoupling
Ripple Current @ Low Frequency63 mA @ 120 Hz
Ripple Current @ High Frequency90 mA @ 100 kHz
Impedance1.93 Ohms
Lead Spacing-
Size / Dimension0.157" Dia (4.00mm)
Height - Seated (Max)0.224" (5.70mm)
Surface Mount Land Size0.169" L x 0.189" W (4.30mm x 4.80mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply ATB226M010, use the request quote form to request ATB226M010 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ATB226M010. The price and lead time for ATB226M010 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ATB226M010. We look forward to working with you to establish long-term relations of cooperation.
