UCH1E561MCS1GS

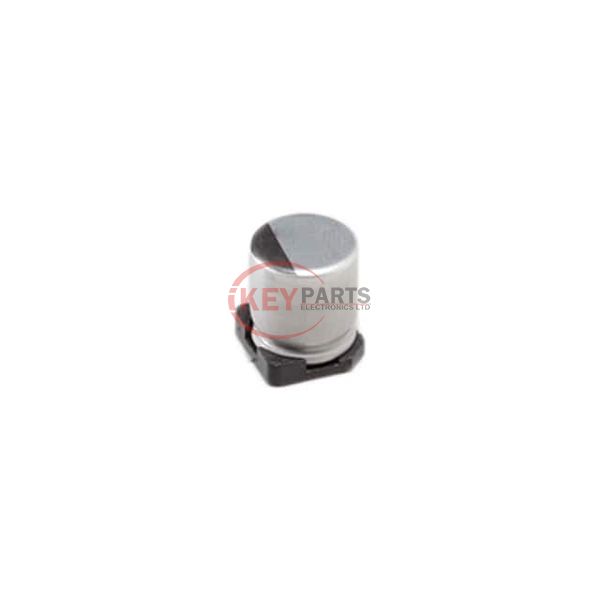

Enlarger

Lmages are for reference only See Product Specitications

Nichicon UCH1E561MCS1GS

Manufacturer :
Nichicon
Mfr. Part # :
UCH1E561MCS1GS
Description
CAP ALUM 560UF 20% 25V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UCH1E561MCS1GS PDF
In Stock
415
UCH1E561MCS1GS Tech Specifications
SeriesUCH
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance560 µF
Tolerance±20%
Voltage - Rated25 V
ESR (Equivalent Series Resistance)150mOhm @ 100kHz
Lifetime @ Temp.2000 Hrs @ 125°C
Operating Temperature-40°C ~ 125°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency250 mA @ 120 Hz
Ripple Current @ High Frequency500 mA @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.433" (11.00mm)
Surface Mount Land Size0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply UCH1E561MCS1GS, use the request quote form to request UCH1E561MCS1GS pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UCH1E561MCS1GS. The price and lead time for UCH1E561MCS1GS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UCH1E561MCS1GS. We look forward to working with you to establish long-term relations of cooperation.
