ECA-2CHG220B

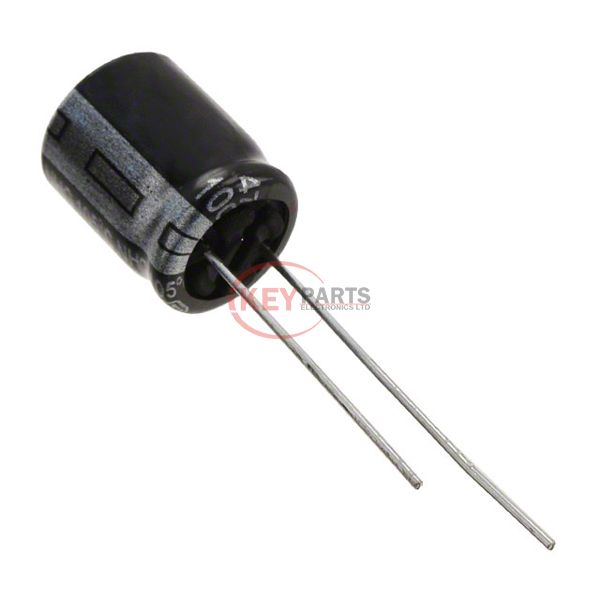

Enlarger

Lmages are for reference only See Product Specitications

Panasonic ECA-2CHG220B

Manufacturer :
Panasonic
Mfr. Part # :
ECA-2CHG220B
Description
CAP ALUM 22UF 20% 160V RADIAL
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ECA-2CHG220B PDF
In Stock
412
ECA-2CHG220B Tech Specifications
SeriesNHG
PackageTape & Box (TB)
Part StatusActive
Capacitance22 µF
Tolerance±20%
Voltage - Rated160 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 105°C
Operating Temperature-25°C ~ 105°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency130 mA @ 120 Hz
Ripple Current @ High Frequency195 mA @ 100 kHz
Impedance-
Lead Spacing0.197" (5.00mm)
Size / Dimension0.394" Dia (10.00mm)
Height - Seated (Max)0.866" (22.00mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
Request Quote Now
Request Quote Now

We can supply ECA-2CHG220B, use the request quote form to request ECA-2CHG220B pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECA-2CHG220B. The price and lead time for ECA-2CHG220B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECA-2CHG220B. We look forward to working with you to establish long-term relations of cooperation.
